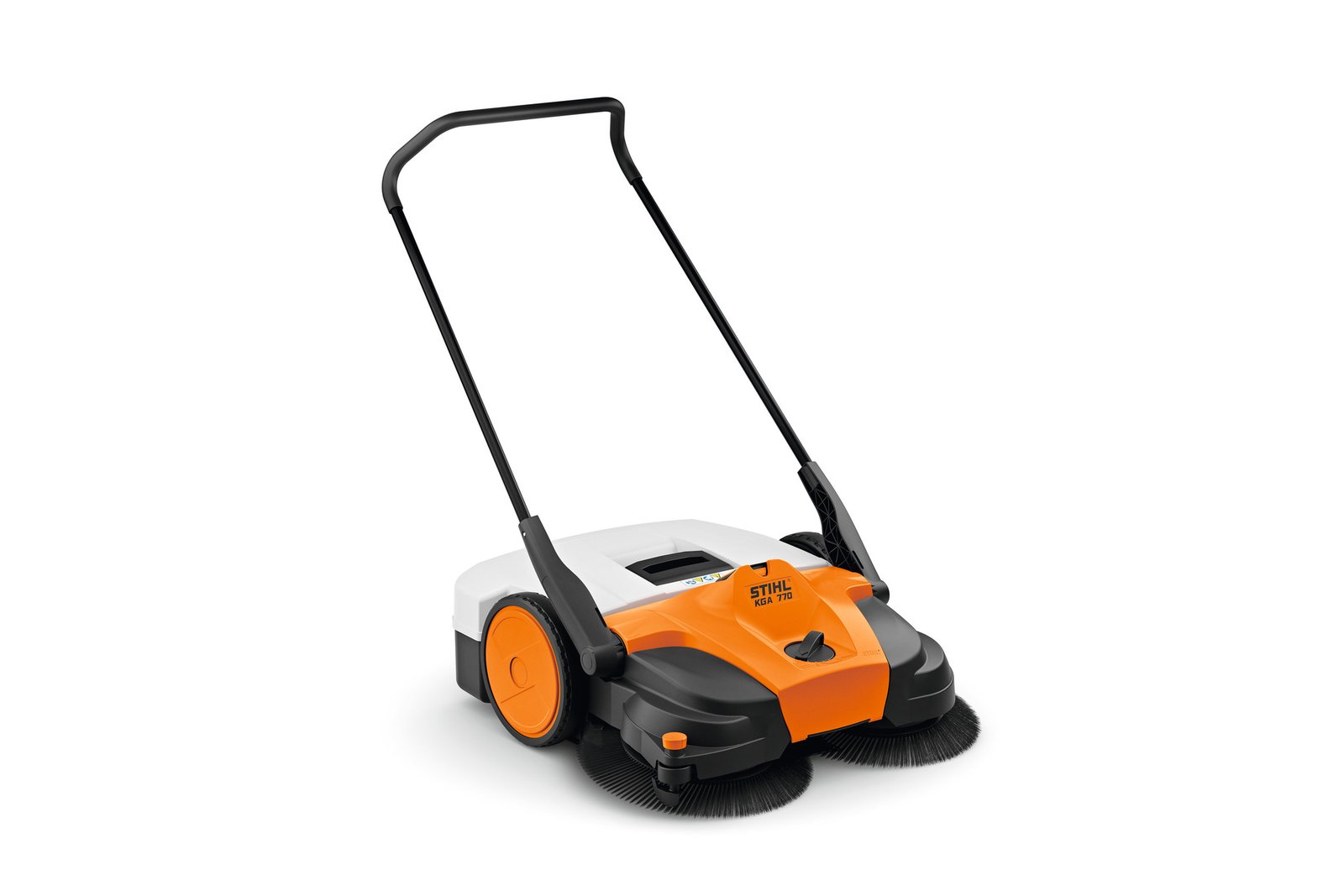

Stihl KGA 770 Cordless Sweeping Machine
£665.10INC VAT
WAS £739.00
- Cordless sweeping machine for quickly cleaning large indoor and outdoor areas
- Tool only — add your preferred AP battery and charger
- Compact design stores upright to save space
- Dust-free sweeping thanks to integrated air filters and sealing strip
- Easy to push with direct brush drive for smooth handling
- Powerful STIHL MultiClean PLUS system handles coarse debris and fine dust
Battery Runtimes
Runtimes
This product is compatible with STIHL ALLPRO System and STIHL AP System.
Full list of battery chargers
ALLPRO and the previous AP battery range are both shown during the system transition.
ALLPRO batteries
Full charge times shown in mins.
| Battery \ Charger | AL 101 | AL 301 | AL 301-4 | AL 501 | AL 1802 MO |
|---|---|---|---|---|---|
| AP 20.1 | – | – | – | 40 mins | 40 mins |
| AP 30.1 | – | – | – | 45 mins | 45 mins |
| AP 100 P | 110 mins | 30 mins | 30 mins | – | 20 mins |
| AP 200 P | 215 mins | 60 mins | 60 mins | – | 20 mins |
| AP 300 P | 330 mins | 90 mins | 90 mins | – | 20 mins |
| AP 300 PC | – | – | – | – | 20 mins |
AL 301-4 = Multiple Battery Charger. AL 1802 MO = Twin Charger. A dash means no confirmed full-charge figure is available in the supplied ALLPRO data.
AP batteries – previous range
Full charge times shown in mins.
| Battery \ Charger | AL 101 | AL 301 | AL 301-4 | AL 501 | AL 1802 MO |
|---|---|---|---|---|---|
| AP 20 | 160 mins | 50 mins | 50 mins | 40 mins | 40 mins |
| AP 30 | 295 mins | 80 mins | 80 mins | 50 mins | 45 mins |
| AP 200 S | 200 mins | 55 mins | 55 mins | 45 mins | 40 mins |
| AP 300 S | 300 mins | 80 mins | 80 mins | 45 mins | 35 mins |
| AP 500 S | 355 mins | 90 mins | 90 mins | 55 mins | 40 mins |
| AR 2000 L | – | 295 mins | 295 mins | 160 mins | 165 mins |
| AR 3000 L | – | 425 mins | 425 mins | 235 mins | 235 mins |
AL 301-4 = Multiple Battery Charger. AL 1802 MO = Twin Charger.
- Stihl AL 101 STANDARD CHARGERShips Today£40.50Add to Bag
- £539.10Add to Bag
- Stihl AL 301 QUICK CHARGERShips Today£89.10Add to Bag
The Stihl KGA 770 cordless sweeping machine is a powerful, efficient solution for cleaning large areas indoors and outdoors. Whether it’s school playgrounds, petrol stations, warehouses, or car parks, it makes fast work of sweeping without the noise and hassle of petrol or mains-powered machines.
STIHL KGA 770 AP Battery Run Time
| Battery | AP 20 | AP 200 S | AP 30 | AP 300 S | AP 500 S |
|---|---|---|---|---|---|
| Run time | 129 mins | 168 mins | 250 mins | 260 mins | 312 mins |
The KGA 770 is compatible with all AP batteries shown above. AR backpack batteries are not required for this model, and run time data is not provided for them.
Why choose the KGA770 cordless sweeper?
Efficient, dust-free sweeping
The KGA770 uses a 36 V AP system battery to keep the circular brushes and power sweep running at a consistent speed. The STIHL MultiClean PLUS system picks up everything from coarse debris to fine dust, ensuring no material gets stuck or left behind. Integrated air filters and a sealing strip significantly reduce dust output, keeping the environment cleaner while you work.
Comfortable and easy to use
The ergonomic push bar is adjustable to suit your height, making long sessions more comfortable and reducing strain on your back. With direct drive to the brushes, the sweeper is easy to push and handle, even on uneven surfaces. When moving backwards, the circular brushes rotate inward to stop debris being scattered.
Practical design details
The large 40-litre waste container holds plenty of debris, so you can keep working longer without emptying. A bristle hold-down clamp helps clean edges and kerbs effectively. Robust polyamide bristles offer excellent wear resistance and come with a four-year warranty, providing long-term reliability even with heavy use.
Compact and space-saving
Once finished, the Stihl KGA770 can be stored upright to save valuable space in sheds or garages. The push bar is easily removable for transport or compact storage.
Flexible battery system
The KGA 770 is recommended for use with the AP 200 battery, providing the right balance of weight and power for large areas. Compatible with other AP system batteries, it offers flexibility depending on your needs and existing equipment.
Technical details
| Rated voltage | 36 V |
| Battery system | AP |
| Recommended battery | AP 200 |
| Weight | 16.9 kg |
| Container capacity | 40 l |
| Sweeping rate | 3250 m²/h |
| For areas up to | 2000 m² |
| Sweeping width | 77 cm |
| Sound pressure level | 64 dB(A) |
| Sound power level | 80 dB(A) |
Frequently Asked Questions About Stihl KGA770
Which battery works best with the KGA 770 sweeper?
Who is the KGA770 cordless sweeper designed for?
How do I maintain my Stihl KGA770?
Can the KGA 770 handle fine dust and wet leaves?
What warranty does the Stihl KGA 770 include?
Part Numbers and EAN Codes
The Stihl KGA 770 Cordless Sweeping Machine has an official Part Number (MPN) and EAN code. Details:
| Brand | MPN | EAN | Delivery Time |
|---|---|---|---|
| Stihl | 48600114704 | 886661337149 | 1–3 Days |
| User Type | Domestic |
|---|---|
| Group | |
| Battery System | |
| Power Type |
Accessories for Stihl KGA 770 Cordless Sweeping Machine
Stihl KGA 770 Cordless Sweeping Machine has at least 14 accessories available through the Stihl brand.
- Stihl AL 101 STANDARD CHARGERShips Today£40.50
£539.10- Stihl AL 301 QUICK CHARGERShips Today£89.10
Stihl AL 301-4 MULTIPLE BATTERY CHARGERShips Mon 12 Oct£287.10
Stihl AL 501 HI-SPEED CHARGERShips Today£134.10
STIHL ALLPRO AP 100 P BatteryShips Today£161.10
STIHL ALLPRO AP 20.1 BatteryShips Mon 12 Oct£161.10
STIHL ALLPRO AP 200 P BatteryShips Today£233.09
STIHL ALLPRO AP 30.1 BatteryShips Mon 12 Oct£242.10
STIHL ALLPRO AP 300 P BatteryShips Today£305.10
STIHL ALLPRO AP 300 PC BatteryShips Mon 12 Oct£332.10
Stihl AP 20 BatteryShips Today£161.10
Stihl AP 30 BatteryShips Today£242.10
Stihl CARRY BAG FOR BATTERY ACCESSORIESShips Mon 12 Oct£26.50
STIHL warranty (GB)
Important: Warranty cover depends on product type, intended use, and any registration/servicing requirements. For the definitive terms, use the official links below.
- Battery handheld (AI / AS / AK): 2 years Domestic; Professional: N/A in STIHL’s table.
- AP System: 2 years Domestic; 2 years Professional.
- Petrol handheld machines: 2 years Domestic; 1 year Professional.
- Personal protective equipment: 1 year Domestic; 1 year Professional.
- Pressure washers: 3 years Domestic; 2 years Professional.
- Grounds care headline: iMOW® shown as 5 years Domestic and Professional, subject to registration and annual servicing.
- Promotions: STIHL sometimes extend warranty on qualifying products (e.g. connected professional extension).
Official terms: STIHL GB warranty periods (tables) | STIHL customer warranty policy (PDF) | Connected professional extension (promo)
