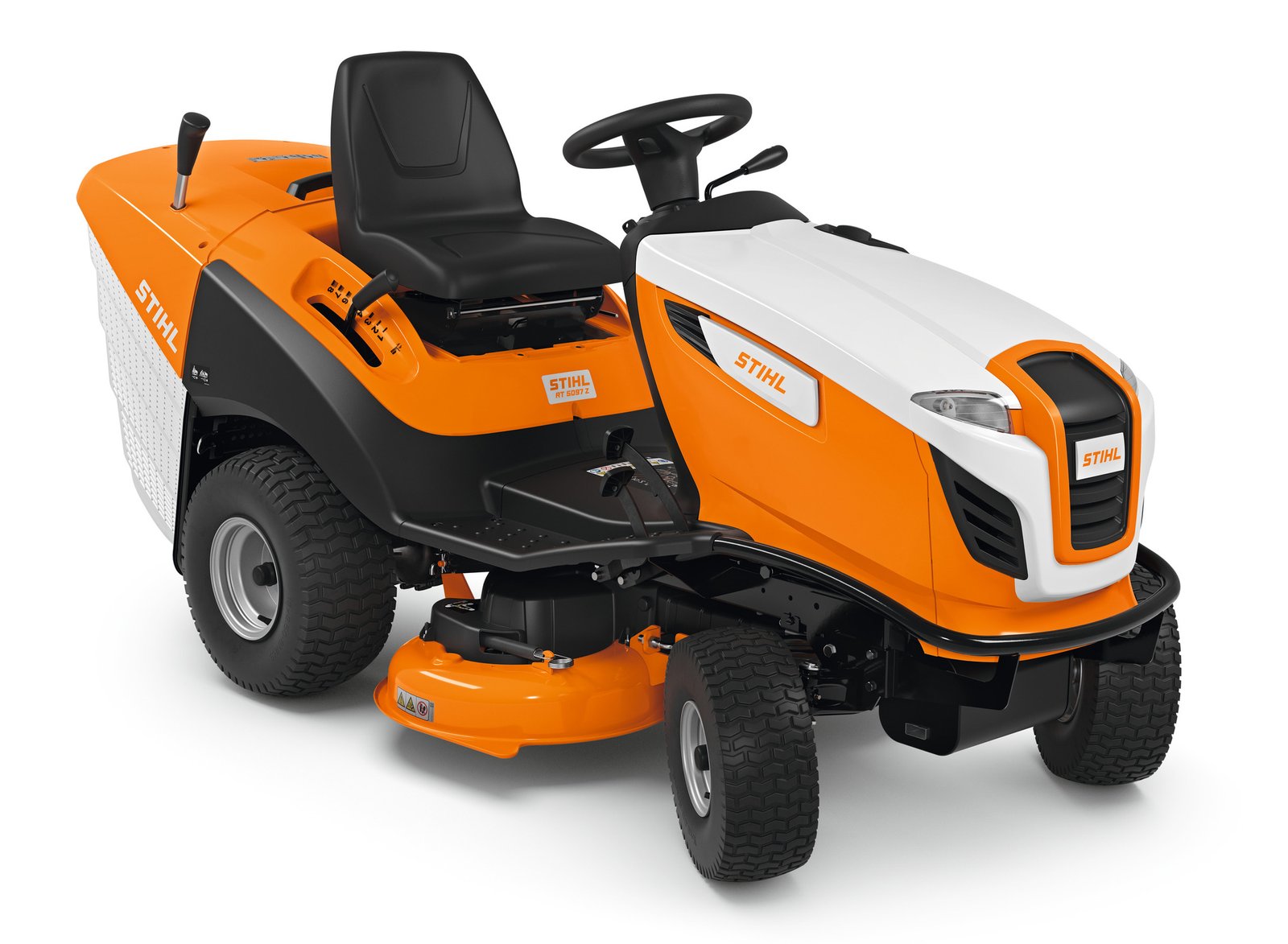

Stihl RT 5097 Z Petrol Ride-on Lawn Mower
£4,103.10INC VAT
WAS £4,559.00
- Powerful ride-on mower with 2-cylinder engine
- For domestic users and landscape gardeners
- Single-pedal drive for swift manoeuvring
- Straightforward cut-height adjustment and blade clutch
- Adjustable operator’s seat for a comfortable ride
- 250-litre plastic grass collection box with sabre-type handle
- Stihl ADF 500 DEFLECTORShips Wed 23 Sep£137.00Add to Bag
- Stihl AGW 098 GARDEN ROLLERShips Wed 23 Sep£340.00Add to Bag
- Stihl AMK 097 – MULCHING KITShips Wed 23 Sep£68.50Add to Bag
RT 5097 Z Petrol Ride-on Lawn Mower: High performance ride-on mower with twin-cylinder engine
The STIHL RT 5097 Z ride-on mower shows that comfort and performance are not just reserved for deluxe models. Enjoy the sprung loaded seat which is adjustable to all heights and master the controls which are close at hand: the forward/reverse drive lever at the steering wheel, the central cutting height adjustment, the blade clutch and the lever for effortless emptying of the grass catcher box. The RT 5097 Z features a very powerful twin cylinder STIHL EVC 700 engine for top level performance. In addition the single-pedal operation and direct steering provide a previously unattained level of comfort during driving, manoeuvring and mowing.
The Grass Guide System on both sides of the mowing deck catches grass blades at the edge of the deck and guides them towards the cutting blades. The 2 blade system with angled blades provides a neat and clean cutting pattern over a width of 95 cm. The RT 5097 Z comes with a 5 year extended warranty (subject to registration and annual servicing).
Features
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.
ELECTROMAGNETIC BLADE CLUTCH
The mowing deck can be easily engaged and disengaged by a switch situated on the control panel.
TURF TYRES
The large turf tyres of the STIHL ride-on mower help to protect the lawn. Thanks to their rounded tyre design, they reduce the formation of driving tracks.
CENTRAL CUT-HEIGHT ADJUSTMENT FOR RIDE-ON LAWN MOW
The lever to adjust the deck cutting height is located directly next to the driver’s seat. It enables individual adjustment of the cutting height in up to eight steps.
ROBUST FRAME
The robust frame construction gives the mower a high level of stability and driving comfort. The STIHL ride-on mowers compact design is great for using attachments such as the AGW 098 garden roller or PICK 300 tilting trailer.
SPRING-LOADED AND ADJUSTABLE SEAT
You can set the most comfortable seat position without the use of tools. This allows individual adjustment of the driver’s seat to almost any body size.
LOW STEP
The low step on the STIHL ride-on mowers provides ample legroom and allows for comfortable access to the seat.
CATCHING MANAGEMENT SYSTEM
The catching system guides the grass blades across the entire working width of the mowing deck. It helps to guide the grass towards the mowing blades for a more efficient cut.
GRASS COLLECTION BOX WITH SABRE HANDLE
The polymer grass catcher box can be emptied effortlessly from the driver’s seat simply using the curved shaped handle. The “dumper” design ensures optimum filling and residual-free emptying of the grass catcher box. Cleaning the catcher box is also easy.
SINGLE PEDAL DRIVE
With the STIHL single pedal drive, the direction of travel can be conveniently switched between forward and reverse gear using a hand lever for quick manoeuvring. The pressure-sensitive pedal allows for precise control of the speed between top speed and standstill. The separate brake pedal ensures immediate stopping.
Technical details
| Displacement | 635 cm³ |
| Rated power | 12.2 kW / 16.6 hp |
| CO2 | 850 g/kWh |
| Gear type | Hydrostatic |
| Motor type | EVC 7000.0 |
| Device weight | 237 kg |
| Cutting width | 95 cm |
| Cutting height | 30 – 100 mm |
| Tank capacity | 9 l |
| Rated speed | 2700 rpm |
| Turning radius | 0.8 m |
| Grass catcher box volume | 250 l |
| Device length without grass catcher box | 206 |
| Device length with grass catcher box | 242 cm |
| Device width with mowing unit | 101 cm |
| Device height to seat | 116 cm |
| Sound power level, guaranteed LWA | 100 dB(A) |
| Measured sound pressure level LpA | 86 dB(A) |
| Uncertainty factor, sound pressure level KpA | 2 dB(A) |
| Vibration level at seat | 0.98 m/s² |
| Uncertainty, vibration on seat | 0.49 m/s² |
| Vibration level at steering wheel | 2.2 m/s² |
| Uncertainty, vibration on steering wheel | 1.1 m/s² |
Part Numbers and EAN Codes
The Stihl RT 5097 Z Petrol Ride-on Lawn Mower has an official Part Number (MPN) and EAN code. Details:
| Brand | MPN | EAN | Delivery Time |
|---|---|---|---|
| Stihl | 61602000024 | 886661590353 | 1–3 Days |
| Group | |
|---|---|
| User Type | Commercial |
| Power Type |
