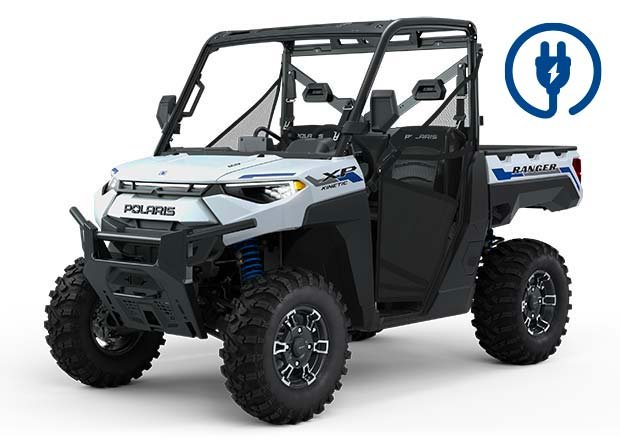

Maximum Electric Range and Capability
This model represents the highest specification in the electric Ranger lineup. It keeps the same heavy-duty XP platform but adds a much larger battery system, faster charging and integrated Ride Command technology. The result is an electric utility vehicle designed for longer working days and more demanding property use.
At the core of the machine is the Interior Permanent Magnet AC motor producing 140 lb-ft of torque and up to 110 HP peak output. Because electric motors deliver torque instantly, the vehicle responds immediately when pulling away with a trailer or climbing hills with cargo.
Double Battery Capacity for Longer Workdays
The biggest upgrade compared with the Premium version is the larger 29.8 kWh lithium-ion battery. This doubles the battery capacity and extends the estimated driving range to around 80 miles (130 km) depending on terrain, load and driving style.
For farms, estates and large properties this longer range allows more work to be completed between charges. Tasks such as transporting equipment, towing trailers or moving materials across large sites become easier without worrying about running out of power.
Faster Charging for Less Downtime
The larger battery is supported by a factory-installed 6 kW onboard charger. This provides significantly faster charging compared with the 3 kW system used on lower trims.
The included Type 2 charging kit allows the vehicle to charge from a range of power sources including standard outlets or dedicated EV charging points. Faster charging helps reduce downtime when the vehicle is used daily.
Ride Command Technology and Navigation
Another major upgrade is the 7-inch Ride Command touchscreen display. This system provides GPS mapping, vehicle diagnostics and battery monitoring in one interface.
The display shows key electric system information such as battery state of charge, remaining range and charging status. It also supports features such as speed limiting, group ride tracking and navigation to help manage larger properties.
Additional technology includes Bluetooth connectivity, audio controls, a rear camera and integration with the Ride Command mobile app.
Built on the Ranger XP Work Platform
Despite its electric drivetrain, the vehicle remains a serious work machine. It can tow up to 2,500 lb (1,134 kg) and carry up to 1,250 lb (567 kg) in the cargo box. This makes it suitable for estate maintenance, agriculture, construction sites and property management work.
The Lock & Ride cargo system allows tools and accessories to be installed quickly without needing complex mounting hardware.
Ground Clearance and Off-Road Capability
Large 29-inch Pro Armor X-Terrain tyres combined with 14 inches of ground clearance allow confident travel across rough terrain. Dual A-arm suspension with 10 inches of travel helps maintain stability when carrying loads or driving across uneven ground.
The high-performance on-demand AWD system automatically transfers power to the wheels with the most traction. VersaTrac Turf Mode allows tight turns on grass surfaces without damaging turf areas.
Warranty Coverage for Electric Power
The vehicle includes a two-year factory warranty along with extended protection for the electric drivetrain. The powertrain receives three years of coverage and the lithium-ion battery is protected for five years.
This extended warranty helps support long-term ownership when switching to electric power for professional work environments.
Technical Specifications
| Motor Type | Interior Permanent Magnet AC Motor |
| Peak Power | 110 HP |
| Torque | 190 Nm (140 lb-ft) |
| Battery Type | Lithium-Ion |
| Battery Capacity | 29.8 kWh |
| Estimated Range | Up to 130 km (80 miles) |
| Charging System | Factory-installed 6 kW onboard charger |
| Charging Kit | Type 2 EVSE (Level 1 / Level 2 compatible) |
| Transmission | Gates Synchronous Belt H/L/N/P (Electronic Forward/Reverse) |
| Drive System | On-demand AWD / 2WD with VersaTrac Turf Mode |
| Braking System | 4-wheel hydraulic disc with regenerative braking |
| Front Suspension | Dual A-arm, 10″ (25.4 cm) travel |
| Rear Suspension | Dual A-arm IRS, 10″ (25.4 cm) travel |
| Front Tyres | 29 x 9-14 Pro Armor X-Terrain |
| Rear Tyres | 29 x 11-14 Pro Armor X-Terrain |
| Wheels | 14″ Aluminium |
| Ground Clearance | 14″ (35.5 cm) |
| Wheelbase | 81″ (206 cm) |
| Overall Dimensions (L × W × H) | 305 × 158 × 198 cm |
| Cargo Box Capacity | 567 kg (1,250 lb) |
| Towing Capacity | 1,134 kg (2,500 lb) |
| Payload Capacity | 677 kg (1,492 lb) |
| Seating Capacity | 3 persons |
| Dry Weight | 907.5 kg (2,000 lb) |
