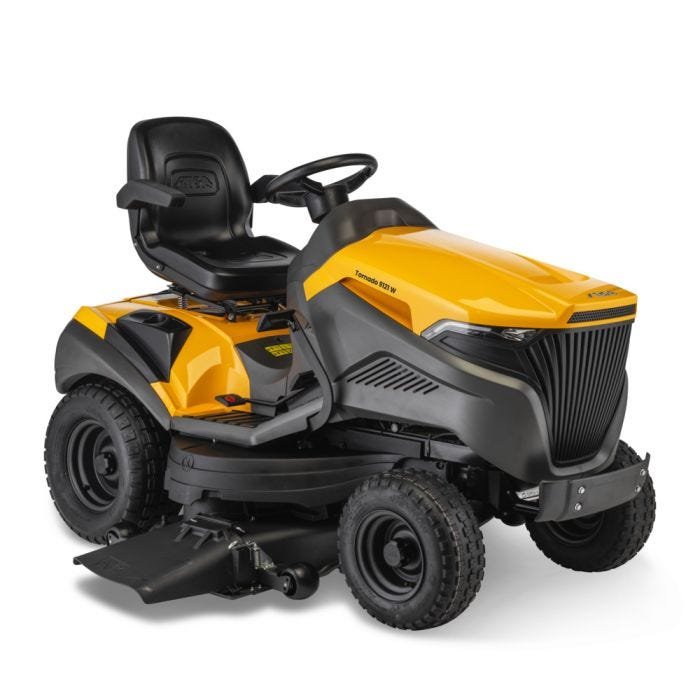

The Tornado 9121 W is ideal for mowing rough turf or large areas of 8.500 m2 with weeds and thick grass. Equipped with a powerful Honda GXV 690 688 cc twin cylinder engine it is designed for heavy-duty mowing. This side discharge model is provided with a 121-cutting deck, 3 cutting blades and a rugged cast-iron front axle. Your long-lasting ally for lawn care.
The cutting-edge STIGA Tornado 9121 W is an impressive lawn-maintenance workhorse designed to make the coverage of expansive grassed areas fast and hassle-free!
Primary amongst numerous premium features is its Honda GXV 690 688 cc twin cylinder engine which, thanks to its V-Twin, overhead-valve design, offers smooth, low-vibration operation, increased torque-output and superior fuel-efficiency.
A two-stage air-filter combined with full-pressure lubrication to minimize component wear and maximize engine life; while a very large-capacity petrol tank (15 litres) – accessed via a handy external filler-cap – lessens downtime by reducing the number and frequency of refueling stops.
Tornado 9121 W is capable of handling the sort of challenging terrain that would defeat a lower-specification model.
It benefits from a smart 5.5″ widescreen display that provides clear, easy-to-read information on engine RPM, battery charge, oil level and fuel level, combined with Best Cutting Zone function to improve cutting performance; and it comes with a widest-in-class 121cm three-blade cutter-deck that ensures an excellent large-area work rate. STIGA Best Cutting-Zone function will always let the operator know when they’re achieving the best cutting-performance, thanks to green-light indicator, whatever the terrain and grass-type.
The Tornado 9121 W has a pedal-operated hydrostatic transmission; an attractive attribute that gives infinitely variable control of the ground-speed (forward and reverse), which in turn optimizes maneuverability and makes it much easier to mow and tow around obstacles.
A cruise-control function means you can lock the forward-speed and give your foot and ankle a rest when required; while LED headlights provide essential illumination should you need to work on into the evening.
The two-in-one Tornado 9121 W is an adaptable tractor that can either side-discharge or mulch clippings, with the former perfect when mowing informal outlying areas and overgrown meadow-grass; and the latter coming into its own on regularly mown formal lawns.
Excelling in terms of comfort and convenience, the Tornado 9121 W has an armrest-equipped seat, a raised soft-grip steering wheel, a cup holder and a storage compartment.
Other stand-out features include deck-mounted gauge wheels that prevent scalping when turning on inclines; a washing link for straightforward under-deck cleaning; and a cast-iron front axle that confers rugged durability.
Mulching plug, trailer hitch and battery charger included.
Technical Specifications
| Lineup | Tornado |
| SKU | 2T1950381/ST1 |
| EAN/UPC | 8008984869301 |
| Level | Expert |
| Series | Series 9 |
| Power source | Petrol |
| Battery capacity | 22 Ah |
| Power | 13.95 kW |
| Mowing areainfo_outline | 10000 ㎡ |
| Engine Brand | Honda |
| Engine model | GXV 690 |
| Displacement | 688 cm³ |
| Engine rotation speed | 2800 rpm |
| Battery Voltage | 12 V |
| Choke | Manual |
| Engine cooling | Air |
| Fuel tank capacity | 15 l |
| Minimum uncut radius | 111 cm |
| Cutting method | Side discharge |
| Cutting width | 121 cm |
| Reverse mowing | Yes |
| Blade rotation | Untimed |
| Cutting height adjustment | Manual with lever |
| Cutting height positions | 7 positions |
| Cutting height range | 30 – 90 mm |
| Number of blades | 3 |
| Additional cutting method | Multiclip mulching |
| Blade engagement type | Electric |
| Traction | Rear-wheel drive |
| Transmission method | Pedal-operated |
| Transmission type | Hydrostatic |
| Steering wheel | STIGA premium with soft grip |
| Seat type | STIGA comfort plus with armrests |
| Seat adjustment | Single lever |
| Dashboard | Yes with smart widescreen display |
| Front wheel size | 16×6.00-8 |
| Rear wheel size | 20×10.00-10 |
| Hour meter | Yes – on display |
| Headlights | LED – Advanced |
| Cruise control | Yes |
| Cast iron front axle | Yes |
| Bumper | Yes |
| Washing link | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
| Pivoting front axle | Yes |
| Antiscalp wheels | 6 |
| Safety system | Seat with Safety Contact Breaker |
| Mulching kit | Included |
| Battery charger | Included |
| Trailer hitch kit | Included |
| Guaranteed sound power level (LwA) – dB(A) | 105 |
| Max vibration on driver’s seat (m/s2) | 0.5 |
| Max vibration on steering wheels (m/s2) | 2.8 |
| Measured sound power level dB(A) | 105 |
| Measured sound pressure level at operator ear dB(A) | 89 |
| Pack weight | 313 kg |
| Product length | 1860 mm |
| Product width | 1520 mm |
| Product height | 1095 mm |
| Weight | 256 kg |
