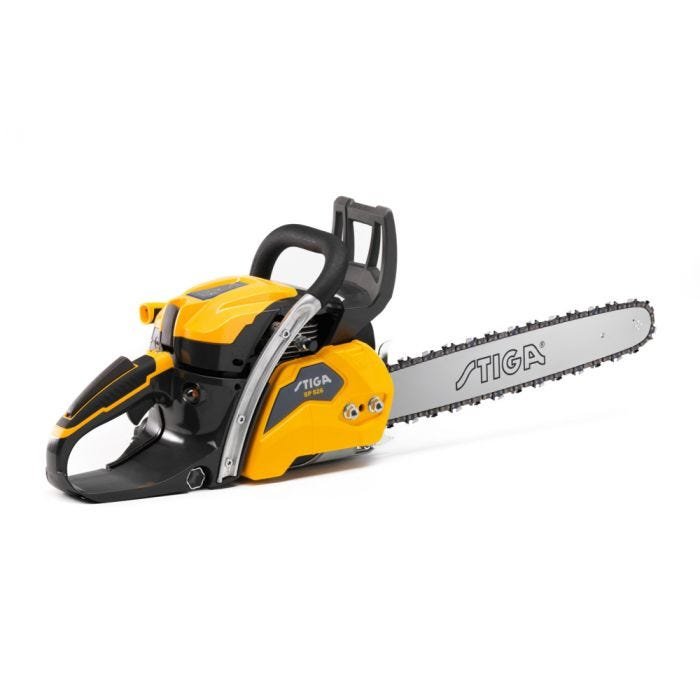

Chainsaw with 52 cc (2.3 kW) petrol engine and 45 cm (18″) cutting bar.
The reliable STIGA CS 755 (15″)petrol chainsaw has a good weight-power ratio, with a 45 cm (18″) guide bar making it suitable for both domestic and forestry work. The 52 cc (2.5 kW) petrol engine is teamed with a magnesium engine cover which ensures robustness, reliability and quick cooling. The decompression valve allows easy starting, while the oil pump is automatic and adjustable. Maintenance operations can be performed quickly and easily thanks to a number of features; such as the tool-less handle on the air filter cover without the need for additional tools, the tensioning wrench located under the rear handle and the fuel tank level monitoring window. The ergonomic soft-touch handle and spring system ensure reduced vibrations and greater comfort.
Manual chain brake
The manual and inertia chain brake allows you to stop the chain in 0.089 seconds with just one hand, offering maximum safety in the event of kickback.
Spark ignition motor
The new 52 cc spark ignition motor delivers the power required for comfortable and prolonged tasks, while maintaining low emission levels and optimised fuel consumption.
Non-slip handle
The ergonomic front handle and soft-touch rear handle, combined with the conveniently positioned levers, enable a comfortable and secure grip.
Accessible air filter
The quick-release system allows immediate access to the air filter and spark plug for maintenance.
Technical Specifications
| EAN/UPC | 8008984853546 |
| SKU | 240521802/ST1 |
| Level | Experience |
| Series | Series 7 |
| Power source | Petrol 2-stroke |
| Power | 2.3 kW |
| Displacement | 52 cm³ |
| Engine rotation speed | 12500 rpm |
| Maximum engine speed | 12500 rpm |
| Idling speed (+/- 100) | 3100 rpm |
| Starter | Recoil |
| Primer | Yes |
| Choke | Manual |
| Fuel tank capacity | 0.46 l |
| Carburettor type | Butterfly valve |
| Ignition coil type | Digital |
| Air filter type | Nylon net |
| Bar type | Sprocket nose |
| Bar length | 45 cm |
| Bar length (inches) | 18 in |
| Chain type | .325″ .058″ (21BPX-72X) |
| Chain speed | 23.1 m/s |
| Chain brake | Manual and inertial |
| Chain oil tank capacity | 0.26 l |
| Chain oil pump | Automatic adjustable |
| Chain tensioning system | Side screw tensioning |
| Handle type | Rear handle |
| Vibe Control System (VCS) | Yes |
| Soft grip handle | Yes |
| Included tools kit | Screwdriver, chain round file, spark plug key |
| Guaranteed sound power level (LwA) – dB(A) | 114 |
| Measured sound power level dB(A) | 110.8 |
| Measured sound pressure level at operator ear dB(A) | 100.6 |
| Vibration level front handle (m/s2) | 6.04 |
| Vibration level rear handle (m/s2) | 6.49 |
| Pack weight | 9.13 kg |
| Weight | 6.78 kg |
| Product weight without bar and chain | 6.6 kg |
| Product length | 831 mm |
| Product width | 275 mm |
| Product height | 315 mm |
