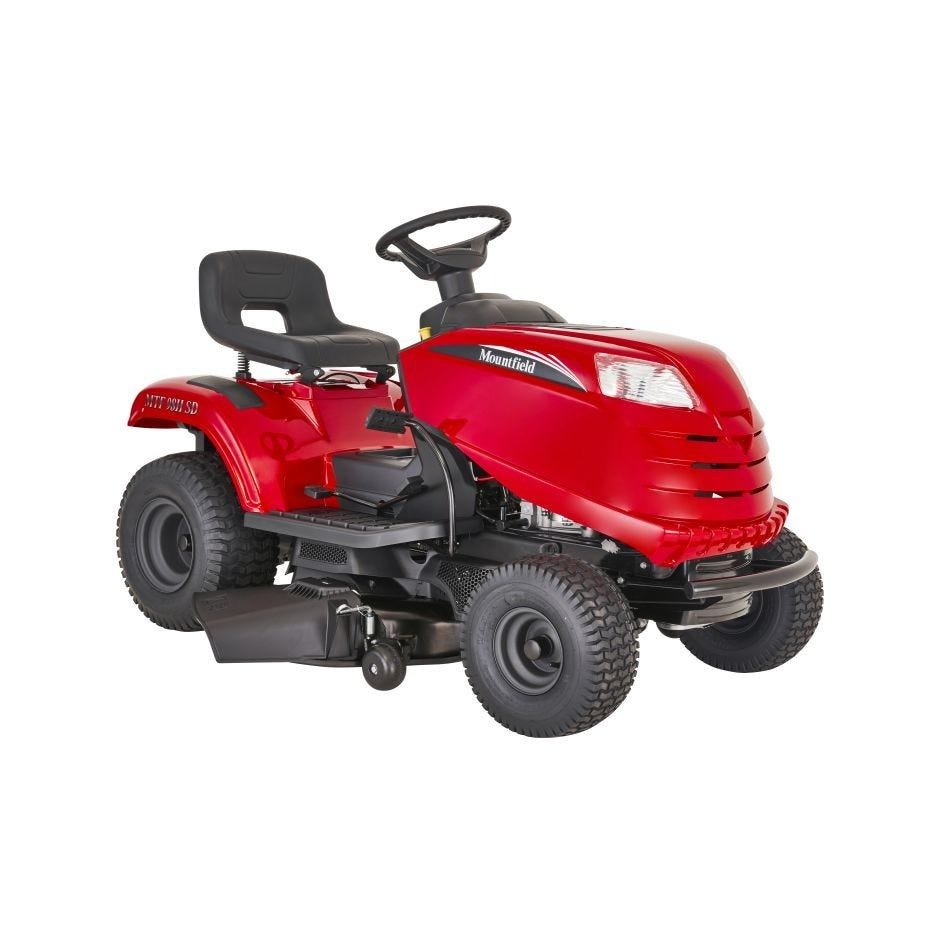

The 1538H-SD is a powerful, versatile and highly manoeuvrable side-discharge tractor. It also has the equivalent of a cars’ automatic transmission -hydrostatic transmission so is smooth and slick. With a 98cm cutting width, it makes light work of any lawn up to 4500 sqm.
Description
This compact high-performance side-discharge tractor is powered by a ST 450 Powered by STIGA 432 cc single cylinder petrol engine with a net power output of 7.1kW @ 2800rpm. Boasting hydrostatic transmission – akin to an automatic car’s transmission, the 1538H-SD is slick, efficient, and powerful.
The twin-blade cutting deck, with a 98cm cutting width, ensures a superb cut with clippings being blown out to the side through the side-discharge chute. Alternatively, you could choose to mulch the grass clippings using a mulching plug/plate (included) that is simple to fit. When mulching, the clippings are finely cut and blown back down onto the lawn to decompose and return valuable nutrients to the soil, saving you cash on lawn fertilisers.
Cleaning after use couldn’t be easier just connect your hose to the deck nozzle, turn on the water and engage the blades and you will quickly have a clean deck and blades ready for next time.
With a wide range of towed accessories available, the Tow Hitch available as an optional extra makes the 1538H-SD extremely versatile in all seasons.
Suitable for areas up to 4500 sqm the 1538H-SD is easy to use, easy to store – thanks to its compact design and is backed by a five-year extended warranty (T & C’s apply). Battery charger sold separately, mulching plug and trailer hitch included.
For advice on the ride-on best suited to your requirements please call our Technical Helpline on 01986 785272 or contact your local Mountfield Dealer who will be happy to advise you.
Delivery Information: This garden tractor will be delivered by our premium ‘Ready to Mow’ white glove delivery service. Your local Mountfield authorised dealer will prepare the machine with a thorough pre-delivery inspection and deliver it ready to use at a time convenient to you. They will also demonstrate its safety features and how to use the machine.
Please allow up to 7 working days for delivery, however, if your local dealer has the machine in stock then delivery would normally be much sooner.
This premium delivery service is available free of charge with this machine.
General info
| EAN/UPC | 8008984851870 |
| SKU | Petrol |
| Battery capacity | 18 Ah |
| Power | 7.1 kW |
| Mowing area | 4500 ㎡ |
| Engine Brand | STIGA |
| Engine model | ST 400 Powered by STIGA |
| Displacement | 414 cm³ |
| Engine rotation speed | 2800 rpm |
| Battery Voltage | 12 V |
| Choke | Manual |
| Engine cooling | Air |
| Fuel tank capacity | 6 l |
Cutting system
| Minimum uncut radius | 70 cm |
| Cutting method | Side discharge |
| Cutting width | 98 cm |
| Reverse mowing | Yes |
| Blade rotation | Untimed |
| Cutting height adjustment | Manual with lever |
| Cutting height positions | 7 positions |
| Cutting height range | 25 – 80 mm |
| Number of blades | 2 |
| Blade type | Mulching |
| Additional cutting method | Mulching |
| Blade engagement type | Electric |
Drive system
| Traction | Rear-wheel drive |
Transmission
| Number of gears | No |
| Transmission method | Pedal-operated |
| Transmission type | Hydrostatic |
Equipment
| Steering wheel | Mountfield ergonomic |
| Seat type | Mountfield classic |
| Seat adjustment | Screws |
| Dashboard | No |
| Front wheel size | 15×5.00-6 |
| Rear wheel size | 18×8.50-8 |
| Hour meter | No |
| Headlights | Conventional |
| Cruise control | No |
| Bumper | Yes |
| Washing link | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
| Pivoting front axle | Yes |
| Antiscalp wheels | 2 |
| Safety system | Seat with Safety Contact Breaker |
Tools kit
| Mulching kit | Included |
| Battery charger | Optional |
| Trailer hitch kit | Optional |
Vibration and noise data
| Guaranteed sound power level (LwA) – dB(A) | 100 |
| Max vibration on driver’s seat (m/s2) | 0.94 |
| Max vibration on steering wheels (m/s2) | 3.33 |
| Measured sound power level dB(A) | 99 |
| Measured sound pressure level at operator ear dB(A) | 86 |
Overall dimensions
| Pack weight | 208 kg |
| Product length | 1726 mm |
| Product width | 1200 mm |
| Product height | 1100 mm |
| Weight | 165 kg |
