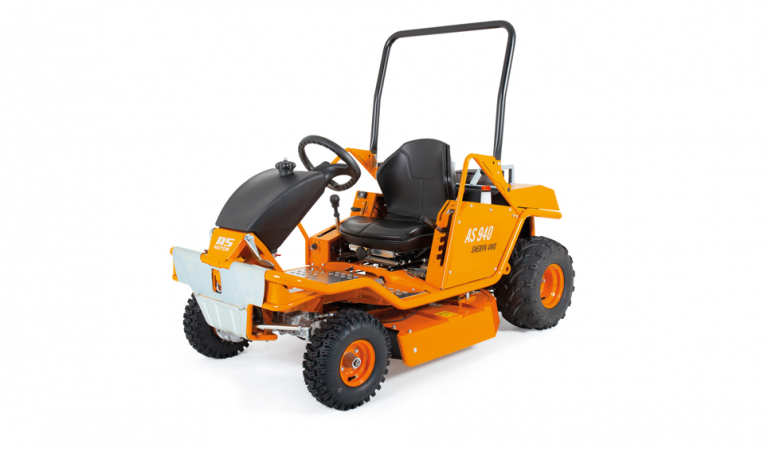

AS-Motor 940 Sherpa 4WD Petrol Ride-On-Mower

AS 940 Sherpa 4WD

Product details

AS mulching mower deck

Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.

Separate air cooling supply

Separate engine air cooling and hydrostatic transmission optimize performance.

Switchable limited slip differential

Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.

Stable, folding bar

Greater operator safety in the machine’s limit area.

High-grass, ride-on mower with permanent all-wheel drive

The AS 940 Sherpa 4WD is a robust, versatile ride-on mower for difficult terrain and high growth. The machine’s 2-cylinder Briggs & Stratton engine with 724 ccm displacement, up to 27 hp and an oil and fuel pump achieve work rates reaching 5,500 m² per hour. Permanent all-wheel drive delivers better traction uphill and stronger, safer braking downhill. The limited slip differential can be activated at any time for more safety. Hydrostatic transmission is controlled exclusively via the drive lever, which controls forward and reverse movements as well as the brake and the parking brake. An additional brake pedal returns the drive lever to neutral and automatically engages the parking brake.

Equipped with the AS cross-blade system, the AS 940 Sherpa 4WD delivers impressive mulching results in grass and dense growth up to 1.5 meters high. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. The mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. Cutting heights can be adjusted to 5 levels from 50–105 cm and an option mulch kit is available for even finer mulching results.

Stability and comfort

With a highly stable tubular frame, the AS 940 Sherpa 4WD performs even under harsh conditions. Operators up to 1.9 m tall can operate the machine comfortably thanks to a length-adjustable seat and seat spring package. A low centre of gravity, folding bar and branch deflectors are added safety features, while lashing points integrated in the frame enable secure transport.

The AS 940 Sherpa 4WD is engineered for continuous operation with two separate ventilation circuits for the engine and hydrostatic transmission. The engine takes in air from above and discharges it to the side, while the hydrostatic transmission takes air from the rear and discharges it downward. This system prevents overheating and ensures the machine’s long service life.

Product advantages

All-wheel drive (AS 940)

Permanent all-wheel drive ensures better traction uphill and stronger, safer braking downhill.

Surfing mulch-mower deck

Closed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.

Ergonomic sitting position provides excellent driving comfort

Length-adjustable driver seat, innovative seat suspension and ergonomic sitting position provide comfort for tall operators during long work periods.

Stable tube frame

High stability and torsional rigidity with heavy load.

Optimal all-terrain mobility

Field stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.

Variable hydrostatic transmission (ride-on mower)

Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.

Stable, folding bar

Greater operator safety in the machine’s limit area.

Applications





Commercial landscaping



Performance on rough terrain, perfect cutting results and high efficiency are advantages AS-Motor machines provide to professional service providers.





Gardening and landscaping



AS-Motor’s professional technology offers solutions for the diverse tasks of gardening and landscaping, from outdoor facilities to private gardens, public parks and residential lawns.





Meadow orchards



Meadow orchards characterize the landscape of diverse regions and provide valuable ecosystems for insect and bird life. Maintaining these areas often involves mowing around trees, on slopes and in rough terrain.





Municipal maintenance



Caring for green areas in the civic environment involves a variety of tasks. From parks to roadside management, AS-Motor provides the correct tools to ensure both professional results and operator safety.





Viticulture



Viticulture, or wine-growing, is one of civilization’s oldest forms of agriculture. AS-Motor was founded 60 years ago with the objective of tackling the slopes and thick growth of vineyards.





Athletic facilities and golf courses



Management of edge areas, embankments and lawns of athletic facilities are as important as the greens themselves.





Equestrian businesses



Equestrian areas require various forms of green care. Whether maintaining paddocks or lawns, AS-Motor offers tools to create the ideal equestrian environment.





Hunting and forestry



In forests and on hunting grounds, mowing can take place as infrequently as once per year or even at intervals of several years. AS-Motor machines are engineered to tackle the thick growth native to these areas as well as Christmas tree plantations.





Leisure facilities



Leisure facilities must be visually appealing and expertly maintained. Whether parks or campsites, these areas are frequently used and thus require careful maintenance.





Road maintenance



Maintaining roadways often involves mowing high grass and slopes, two specialties of AS-Motor’s professional technology.





Solar parks



Efficiency is crucial to maintaining a profitable solar park. AS-Motor offers the ideal tools to properly maintain the green areas around and under solar panels.





Utilities



AS-Motor offers professional technology for the maintenance of green spaces in and around public utility facilities.

Accessories

Trailer

Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.

Trailer hitch Sherpa

To connect the AS trailer.

Snow blade

Width: 1107 mm, height: 348 mm. Pivots on both sides.

Mulch kit – AS Sherpa

For even finer mulching and more uniform cutting results on lawns with grass up to 40 cm high.

Snow chains

Cross-track chain for the drive wheels.

Weatherproof cab

Weather protection for adverse conditions.

Tech Specs

•
  cutting width

  90 cm
•
  engine manufacturer

  B&S
•
  engine designation

  Professional Series 8
•
  4-stroke engine, 1-cyl. / 2-cyl.

  /
•
  displacement

  724 cm³
•
  maximum power

  20,1/27,0 kW (hp)
•
  rated power

  16,5/22,4 kW (hp)
•
  rated speed

  3300 rpm
•
  drive, 2WD rear / 4WD permanent

  /
•
  drive, variable hydrostatic transmission


•
  max. speed

  6,2 km/h
•
  limited-slip differential


•
  automatic parking brake


•
  mono-blade / cross-blade / Y-flails

  / /
•
  side discharge / rear discharge

  /
•
  closed mower deck


•
  surfing mower deck


•
  cutting height

  50 – 105 mm
•
  tank capacity

  17 l
•
  seat spring package, standard / optional

  /
•
  dimension L/W/H

  191x98x152 cm
•
  weight

  290 kg
