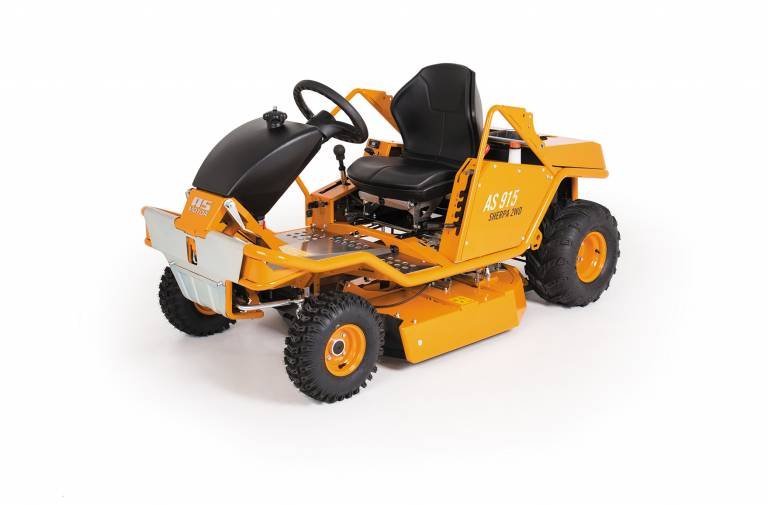

AS-Motor 915 Sherpa 2WD Petrol Ride-On-Mower

AS 915 Sherpa 2WD

Product details

AS mulching mower deck

Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.

Maintenance-friendly

Easy access to oil dipstick and air filter.

Switchable limited slip differential

Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.

Narrow turning radius

Oscillating front axle for extremely agile operation and a turning radius of just 65 cm.

Enter the Sherpa family: Ergonomic workstation meets agile ride-on mower

Take your place in the Sherpa class. Surfing mower deck, cross-blade system, perimeter tubular frame and one-hand lever operation are advantages of our AS 915 Sherpa 2WD. The all-rounder for ambitious private users or professional use.

Robust engine and comfortable traction drive

The AS 915 Sherpa 2WD is powered by a two-cylinder engine from the Briggs & Stratton Professional Series 7220. The engine delivers 656 cm³ displacement and up to 22 hp, and is equipped with an oil and fuel pump. Variable traction drive occurs via hydrostatic transmission. Forward speeds from 0-10.5 km/h and reverse speeds from 0-8.2 km/h can be selected via one-hand operation. Another advantage: a mechanical parking brake is integrated in the drive lever. The limited slip differential can be engaged at any time for additional traction.

Closed, surfing mower deck

Equipped with a cross-blade system and a closed mower deck the AS 915 2WD Sherpa reliably chops growth up to 1.2 m high. Surfing suspension allows the mower deck to adapt to uneven soil and thus protects blades and turf, when driving over a hilltop for example. Cutting height is adjusted centrally in levels ranging from 50-105 mm.

Sitting “in” the machine

A deep sitting position gives the operator the feeling of sitting in, rather than on, the machine. This position protects the user from undergrowth, for example. The bucket seat is adjustable in length which, combined with plenty of legroom, provides space for operators up to 1.9 m tall. A spring seat package is available for even greater comfort. All operating elements are arranged logically and can be easily reached.

Product advantages

Surfing mulch-mower deck

Closed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.

Excellent driving comfort through an ergonomic sitting position (AS 915)

The length-adjustable driver seat and the ergonomic sitting position enable comfortable work over a longer period of time, even for large persons.

Small turning radius, high work rate

The turning radius of just 60 cm provides agility even on difficult terrain.

Stable tube frame

High stability and torsional rigidity with heavy load.

Terrain with moderate inclines

Performs on moderate inclines thanks to a low weight and low centre of gravity.

Variable hydrostatic transmission (ride-on mower)

Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.

Applications





Commercial landscaping



Performance on rough terrain, perfect cutting results and high efficiency are advantages AS-Motor machines provide to professional service providers.





Gardening and landscaping



AS-Motor’s professional technology offers solutions for the diverse tasks of gardening and landscaping, from outdoor facilities to private gardens, public parks and residential lawns.





Equestrian businesses



Equestrian areas require various forms of green care. Whether maintaining paddocks or lawns, AS-Motor offers tools to create the ideal equestrian environment.





Private customers



When the goal is perfecting an ornamental lawn, obtaining forage for small animals or tending to the gardens and orchards of weekend homes, AS-Motor offers several professional mowing tools that will provide private users with excellent results for many years to come.





Meadow orchards



Meadow orchards characterize the landscape of diverse regions and provide valuable ecosystems for insect and bird life. Maintaining these areas often involves mowing around trees, on slopes and in rough terrain.





Leisure facilities



Leisure facilities must be visually appealing and expertly maintained. Whether parks or campsites, these areas are frequently used and thus require careful maintenance.





Athletic facilities and golf courses



Management of edge areas, embankments and lawns of athletic facilities are as important as the greens themselves.





Viticulture



Viticulture, or wine-growing, is one of civilization’s oldest forms of agriculture. AS-Motor was founded 60 years ago with the objective of tackling the slopes and thick growth of vineyards.

Accessories

Trailer

Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.

Trailer hitch Sherpa

To connect the AS trailer.

Snow blade

Width: 1107 mm, height: 348 mm. Pivots on both sides.

Mulch kit – AS Sherpa

For even finer mulching and more uniform cutting results on lawns with grass up to 40 cm high.

Snow chains

Cross-track chain for the drive wheels.

Weatherproof cab

Weather protection for adverse conditions.

Seat Suspension Kit (AS 915)

Seat suspension with improved progressive suspension, reinforced gas pressure damper and new end stop. Adjustable from 60-120 kg.

Twin tyres AS 65, AS 73, AS 84, AS 701 SM

Improved traction on slopes.

Tilt meter

Convenient display of slope incline.

Steering wheel knob

Optional for level terrain.

Tech Specs

•
  cutting width

  90 cm
•
  engine manufacturer

  B&S
•
  engine designation

  Professional Series 7220
•
  4-stroke engine, 1-cyl. / 2-cyl.

  /
•
  displacement

  656 cm³
•
  maximum power

  16,4/22,0 kW (hp)
•
  rated power

  13,3/18,0 kW (hp)
•
  rated speed

  3300 rpm
•
  drive, 2WD rear / 4WD permanent

  /
•
  drive, variable hydrostatic transmission


•
  max. speed

  10,5 km/h
•
  limited-slip differential


•
  automatic parking brake


•
  mono-blade / cross-blade / Y-flails

  / /
•
  side discharge / rear discharge

  /
•
  closed mower deck


•
  surfing mower deck


•
  cutting height

  50 – 105 mm
•
  tank capacity

  15 l
•
  seat spring package, standard / optional

  /
•
  dimension L/W/H

  191x98x100 cm
•
  weight

  270 kg
