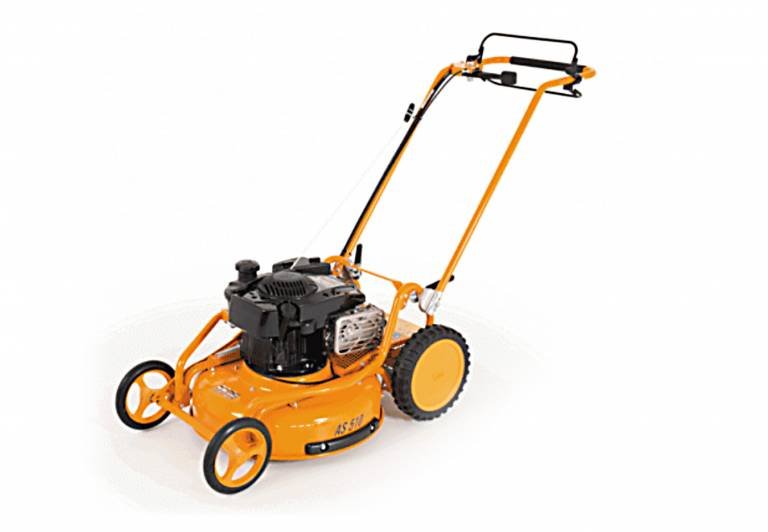

AS-Motor 510 ProClip 4T A Petrol Mulching Mower

AS 510 ProClip 4T A

Product details

Stable mulching unit

Closed deep mulching unit for uniform results.

Perfect balance

A rotated engine achieves uniform weight distribution for better handling.

Cutting height adjustment

Central spring-supported height adjustment.

Special front wheels

Double ball-bearing supported, smooth-running wheels press down very little grass.

Mulching mower for professional users

The AS 510 ProClip 4T A offers work rates reaching 2,100 m² per hour due to a high-performance Briggs & Stratton engine and a 51 cm cutting width. The Briggs & Stratton engine not only delivers up to 5.7 hp, its asymmetric arrangement also ensures excellent handling thanks to a balanced distribution of weight. A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles while a variator allows the convenient adjustment of speed from 2.1–4.0 km/h while in motion. Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, which quickly springs back up to be cut by the blade. Cutting height can be adjusted to 6 levels from 40–90 mm via a spring-supported system. Large, aggressive tread wheels ensure optimal traction and propulsion.

Mulching fertilises the lawn

The AS 510 ProClip 4T A saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag as well as the time and cost-intensive process of disposing of the cuttings. The mulching blade cleanly cuts grass up to 20 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s multiple cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out.

Product advantages

Up to 30% time saved

No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Traction drive (AS 510)

Comfortable work through variable adjustable speed (variator) in conjunction with large, aggressive tread drive wheels for optimal traction.

Stable double frame

Stable tube frame with replaceable mulching unit.

Applications

Commercial landscaping

Performance on rough terrain, perfect cutting results and high efficiency are advantages AS-Motor machines provide to professional service providers.

Municipal maintenance

Caring for green areas in the civic environment involves a variety of tasks. From parks to roadside management, AS-Motor provides the correct tools to ensure both professional results and operator safety.

Gardening and landscaping

AS-Motor’s professional technology offers solutions for the diverse tasks of gardening and landscaping, from outdoor facilities to private gardens, public parks and residential lawns.

Private customers

When the goal is perfecting an ornamental lawn, obtaining forage for small animals or tending to the gardens and orchards of weekend homes, AS-Motor offers several professional mowing tools that will provide private users with excellent results for many years to come.

Utilities

AS-Motor offers professional technology for the maintenance of green spaces in and around public utility facilities.

Equestrian businesses

Equestrian areas require various forms of green care. Whether maintaining paddocks or lawns, AS-Motor offers tools to create the ideal equestrian environment.

Accessories

Operating hour meter

Documentation of work hours.

Tilt meter

Convenient display of slope incline.

5-litre tank

High-capacity 5-litre tank for long work intervals without refueling.

Front and side guard

To protect the front wheels.

Tech Specs

•
  cutting width

  51 cm
•
  maximum grass height “mulching”

  20 cm
•
  engine manufacturer

  B&S
•
  engine designation

  850 PXi Readystart
•
  1-cyl.engine, 4-stroke / 2-stroke

  /
•
  maximum power

  4,2/5,7 kW (hp)
•
  rated power

  3,2/4,3 kW (hp)
•
  rated speed

  2800 rpm
•
  third crankshaft bearing for engine protection


•
  100% mulching function


•
  cutting height

  40 – 90 mm
•
  central cutting height adjustment


•
  cutting height adjustment, number of levels

  6
•
  rear-wheel drive


•
  number of gears

  Vario
•
  max. speed

  4 km/h
•
  Handlebar adjustment: height


•
  tank capacity

  1,2 l
•
  dimension L/W/H

  139x55x100 cm
•
  weight

  43 kg
