Description

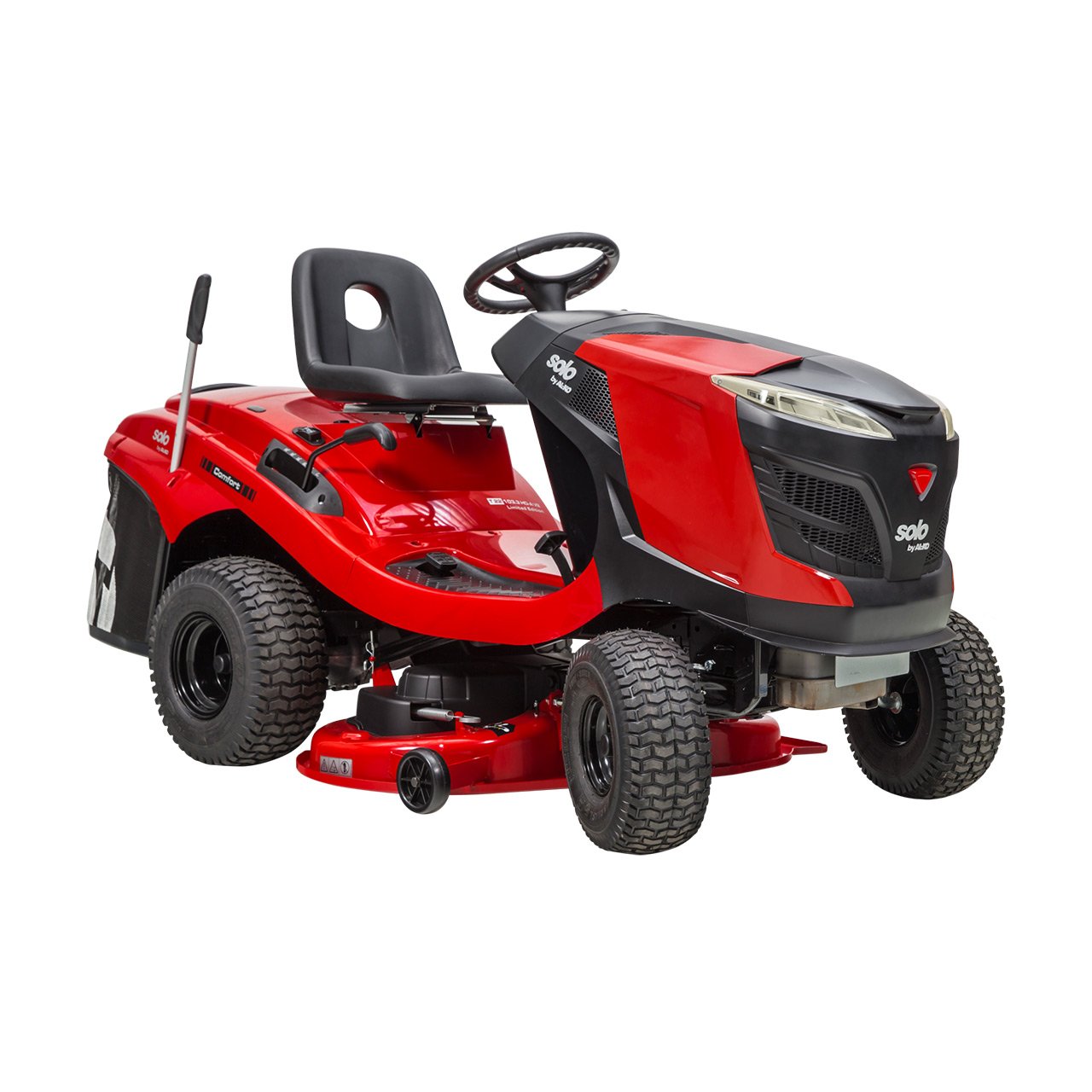

In a new design – solo® by AL-KO petrol lawn tractor T 15-103.3 HD-A
The new generation of our Comfort pro lawn tractors shines in new splendour thanks to the new bonnet in an innovative design. Quality and longevity are guaranteed with this product thanks to the key objectives “engineered in Germany” and “made in Austria”.
Simply comfortably improved
Thanks to the improved box frame, the collection box has a new pivot point, which in turn means simplified emptying – while increasing the box volume at the same time. Hooking and unhooking is also much easier.
The T 15-103.3 HD-A lawn tractor is driven by a 7.5 kW AL-KO Pro engine – robust and low-vibration. The cutting height can be adjusted in 6 steps from 30 mm to 80 mm with one hand. Another advantage in terms of comfort is the easily accessible controls, the stepless foot hydrostat and the low step-through, including plenty of legroom.
The MaxAirflow technology ensures optimal grass transport into the grass catcher box for high efficiency and few empty runs when working with the lawn tractor. When the grass catcher box is full, an acoustic signal indicates that the box should be emptied in good time. The large 18″ rear tires ensure good grip and good progress on any surface and in any terrain. The durable mower deck made of sheet steel includes two blades for a clean cut of grass and can be removed in a few simple steps. A snow plough and many other useful accessories from our range of accessories can be attached to the T 15-103.3 HD-A lawn tractor with little effort, for example in winter.
Buy the solo® by AL-KO petrol lawn tractor T 15-103.3 HD-A & alternatives
You can buy the T 15-103.3 HD-A lawn tractor from us near you. If you want a tractor with a smaller cutting width, we recommend the solo® by AL-KO petrol lawn tractor T 13-93.3 HD (item no. 127689).
Our advantages for you
AL-KO premium delivery service: Our solo® by AL-KO products can be delivered by one of our specialist AL-KO lawn tractor dealers. Our premium delivery service includes delivery of the assembled product to your property as well as advice on how to use the ready-to-use machine.
Warranty period
Standard Domestic Warranty – 2 Years
Extended Domestic Warranty – 5 Years *Subject to Annual Servicing*
Commercial Warranty – 90 Days
Technical Data
General
| Product number | 127688 |
|---|---|
| EAN | 4003718064063 |
| Net Weight in kg | 230 KG |
| Gross Weight in kg | 293 KG |
| Width in cm | 110 CM |
| Height in cm | 114 CM |
| Length in cm | 239 CM |
| Sound Power Guar LwA[dB (A)] | 100 |
| Brand | solo® by AL-KO |
| Manufacturer | AL-KO Geräte GmbH |
| Manufacturer address | Ichenhauserstr. 14, 89359 Kötz |
| Manufacturer contact | https://www.alko-garden.com/contact |
| Product Range | COMFORT pro |
Power supply
| Drive type | Petrol |
|---|
Collection System
| Electric Box Emptying | No |
|---|---|
| Catch Box Level Indicator | Yes |
| Catch Box Capacity in Litres | 250 L |
| Catch Box Material | Fabric with hard top |
Traction System
| Reverse Speed max km/h | 4 KMH |
|---|---|
| Forward Speed max km/h | 9 KMH |
| Transmission | Foot hydrostatic T3 |
| Differential lock | 002 |
| Rear Wheel Diameter inches | 18X8.5-8 |
| Front Wheel Diameter inches | 15X6.0-6 |
Lighting
| Headlights | optional |
|---|
Mowing System
| Cutting Width in cm | 103 CM |
|---|---|
| Working Width in cm | 103 CM |
| Cutting height min / max in mm | 30 – 80 MM |
| Cutting Height Adjustment | Central, 6 stage |
| Mulching function | Optional |
| Side Discharge | No |
| Type of Cutting Deck | Standard |
Bump Protection
| Front bumper | optional |
|---|
Smart Features
| Connectivity | No |
|---|---|
| Retrofit kit for smart-connect | no retrofit kit available |
| Type of Display | Without |
Engine
| Autochoke | No |
|---|---|
| Volume of Fuel Tank Liters | 7 L |
| Electric Start | Yes |
| Cubic Capacity in cc | 452 |
| Number of Strokes rpm | 2450 |
| Power in kW | 7.5 KW |
| Engine Model | 024 |
| Primer | No |
| No. of Engine Cylinders | 1 |
| Device Power in kW | 7.5 |
Download Manuals
| Product Manual | Download Manual_127688_04_442429.pdf Download Manual_127688_03_442435.pdf Download Manual_127688_03_493229.pdf |
|---|---|
| EC Declaration of Conformity | Download Conf_127688_01_494037.pdf |
| Safety information | Safety informationDownload Manual_127688_04_442429.pdf Download Manual_127688_03_442435.pdf Download Manual_127688_03_493229.pdf |
